• Brand Name:PIMI
• Model Number:PM54-A05-D
• Color:White
• Place of Origin:Guangdong, China
• Material:Plastic
• Code:Copy Code Optional
• Function:remote control
• Input voltage:12V/24V
• input current:2.5A
• output voltage:12V/24V
• output current:2A for main light, 0.5A for color light
• static power:less than 0.3W
• warranty:2 years

Distance of remote control without barrier: ≤ 12m

Distance of remote control with acrylics and foaming: ≤4m

Hole on the acrylics and foaming will be good for distance of remote control

-5 output channels, good for strip light, light board of RGB CCT

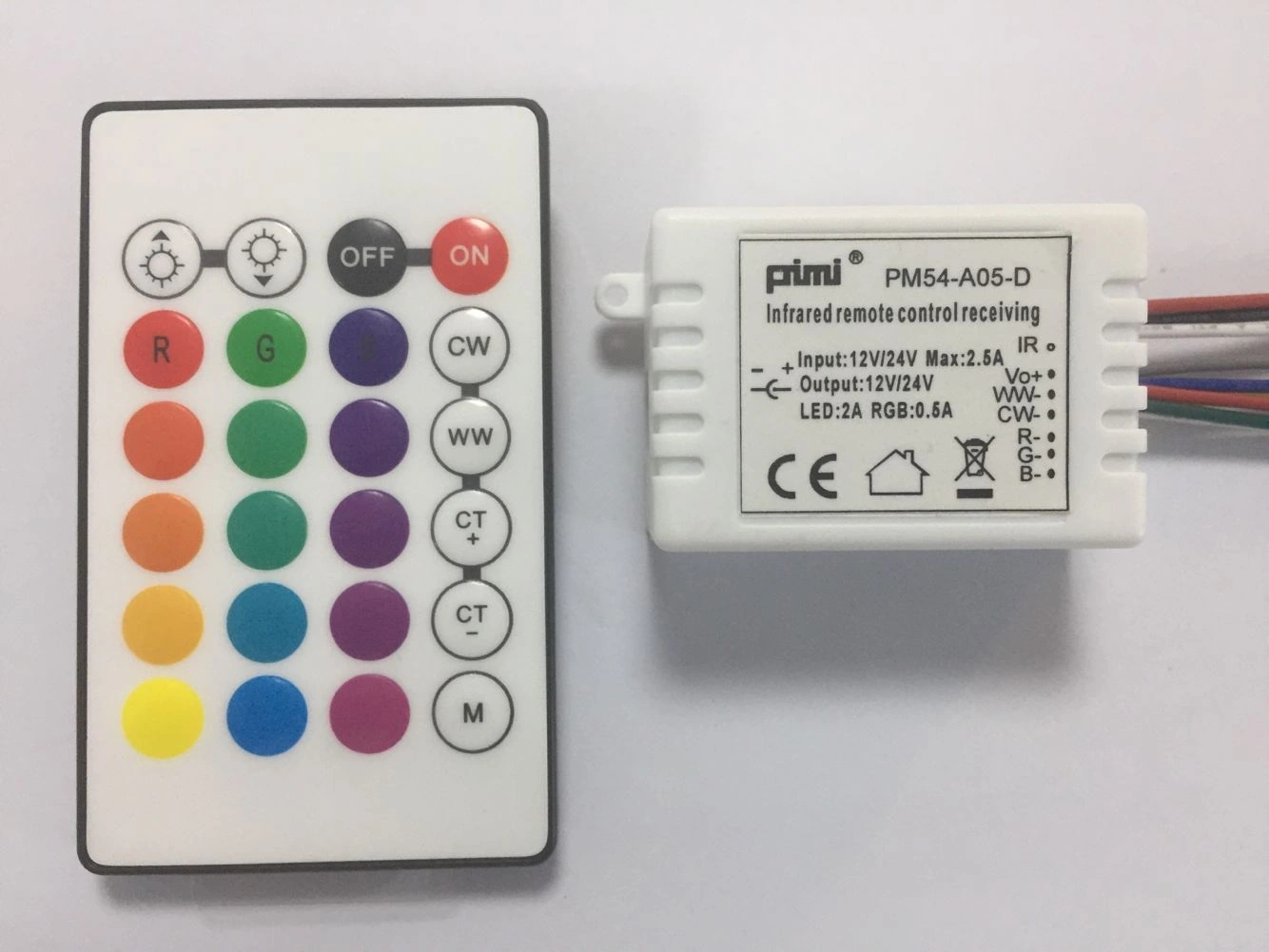

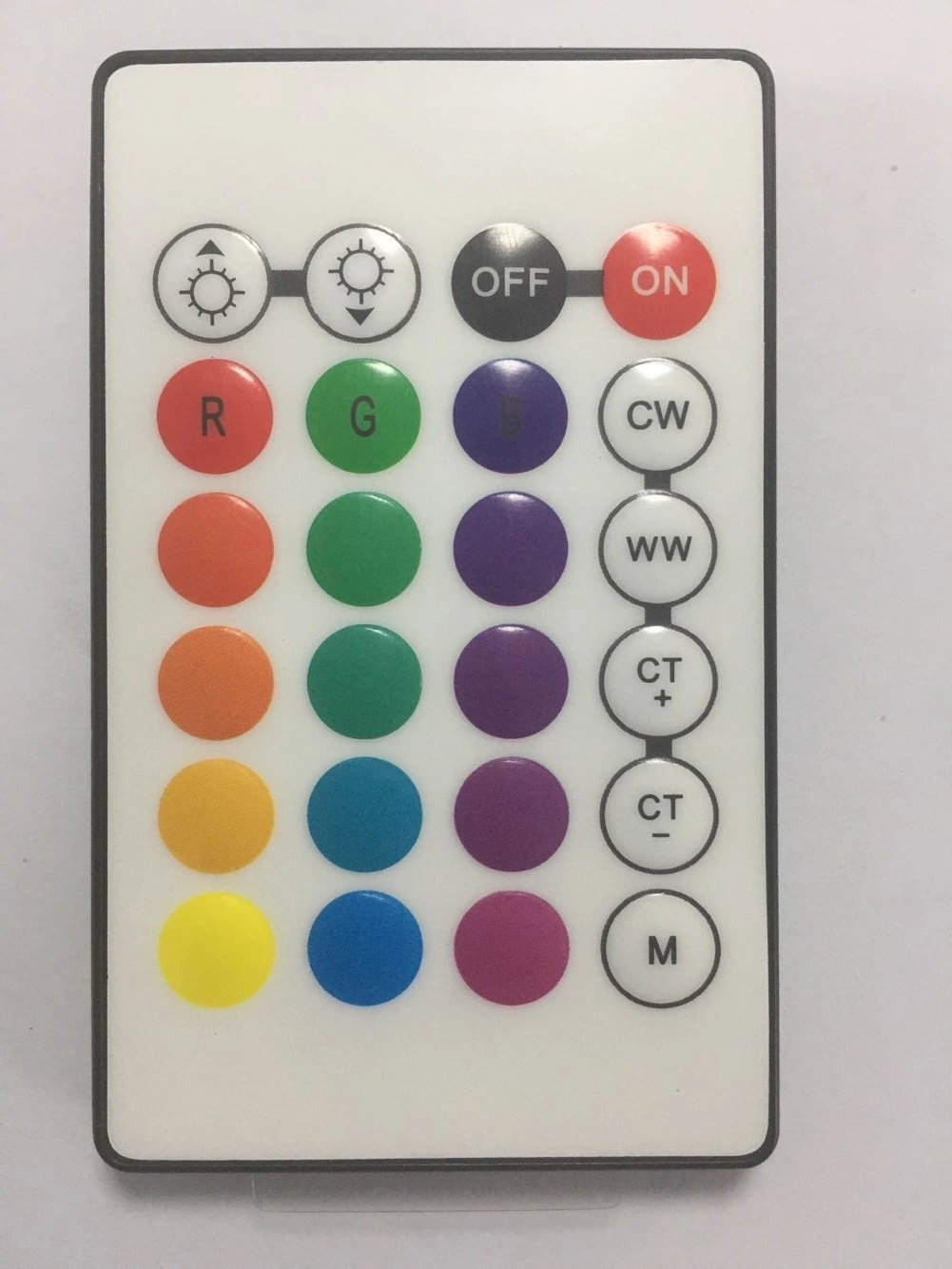

-24-key IR remote controller
-support multimode and multicolor switch over
-changing mode: color changing, brightness changing, jumping change, radient changing
-stage and continuous dimming and changing color temperature
-RGB color and brightness changed individually,
-12-24V input

-static power: <0.3W

Functions of the keys as following: (memory of main function)

-  short press once to increase 5% brightness;

    press and hold to increase brightness continuously

- short press once to decrease 5% brightness;

   press and hold to decrease brightness continuously

Power off key

Power on key

 start and pause the color gradient

Press once to turn on cool white, press and hold to turn off cool white

Press once to turn on warm white, press and hold to turn off warm white

Short press once to increase 5% color temperature

Press and hold to increase color temperature continuously

Short press once to decrease 5% color temperature;

press and hold to decrease color temperature continuously

Color lights switch

three colors jumping change

three colors gradient change

seven colors jumping change

seven colors gradient change

power off color lights

Choose color lights

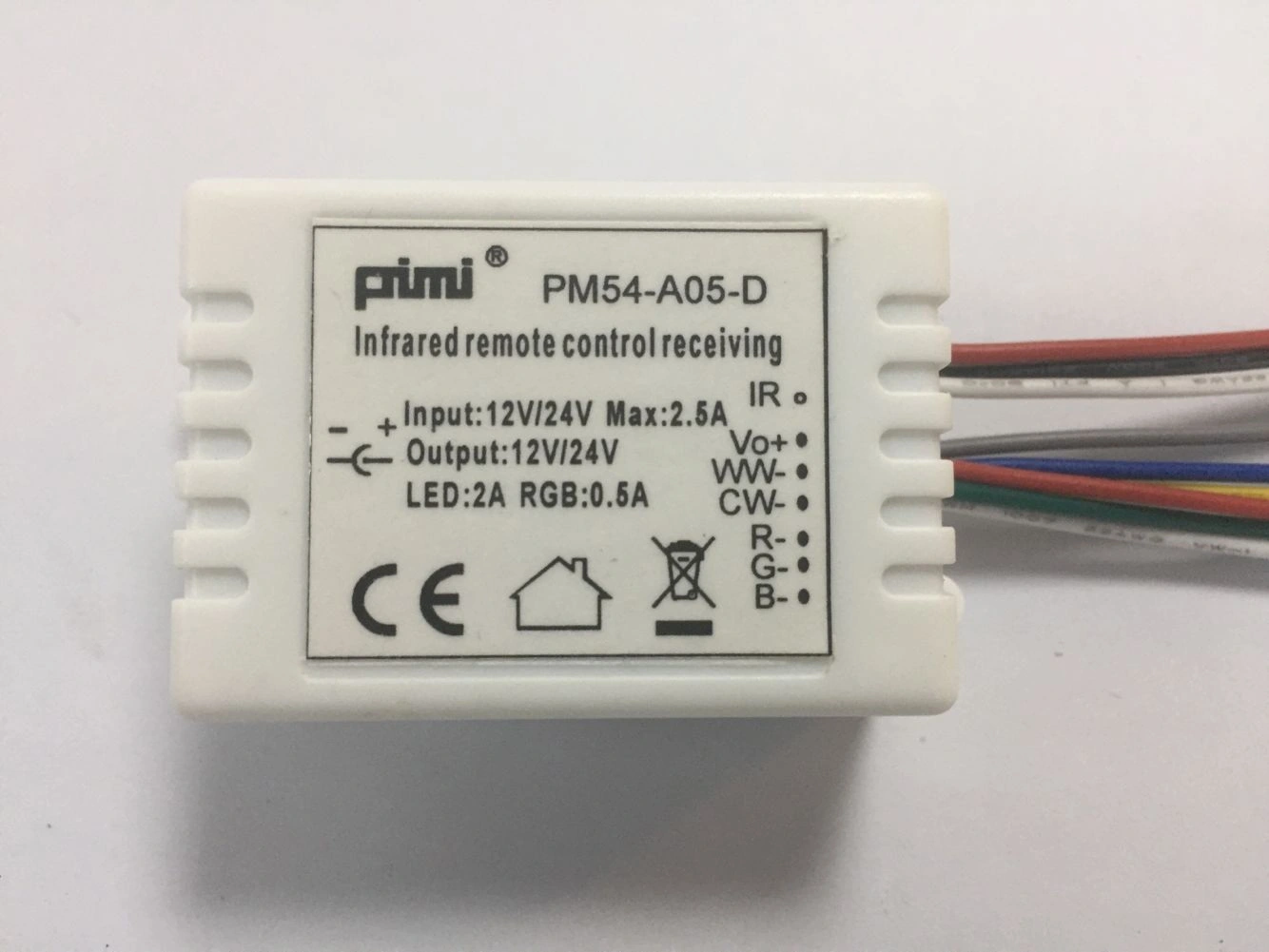

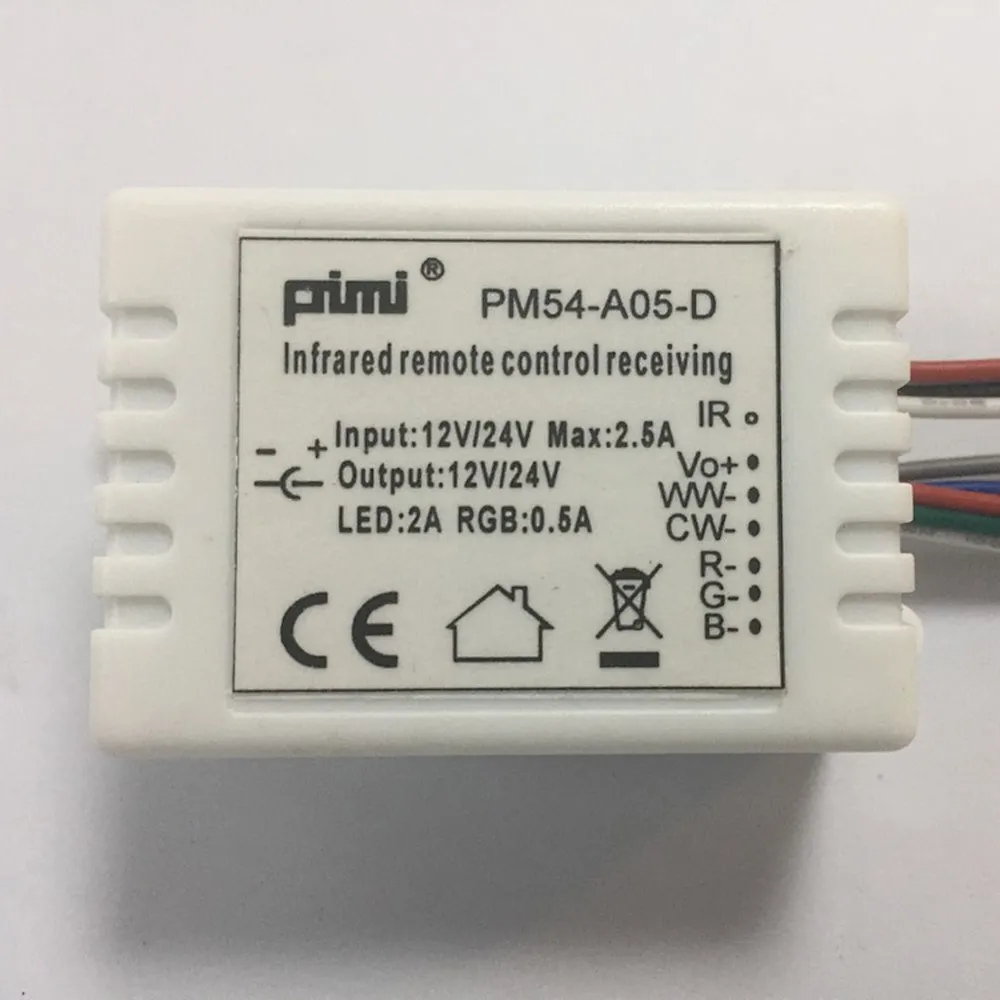

Receiver specification

    input: constant voltage 12V-24V, 2.5A max

    output: 12V/24V,

    output current for main light: 2A

    output current for RGB: 0.5A
