PM42-B97A Constant voltage input/Constant current output LED touch dimmer
price
$2.70 - $3.30 / piece
PM42-B97A
1 piece
Shenzhen
Quantity
- Warranty(Year):2-Year
- Lighting solutions service:auto CAD layout
- Place of Origin:Guangdong, China
- Brand Name:PIMI
- Type:MANUAL SWITCH
- Max. Load Power:36W
- Product name:Led touch dimmer
- Input Voltage:7-30V 24-36V DC
- Output Voltage:4-27V 4-33V DC
- Output constant current:300-1500mA
- Voltage:7-30V 24-36V DC
- Dimming mode 1:continuous dimming
- Dimming mode 2:step dimming

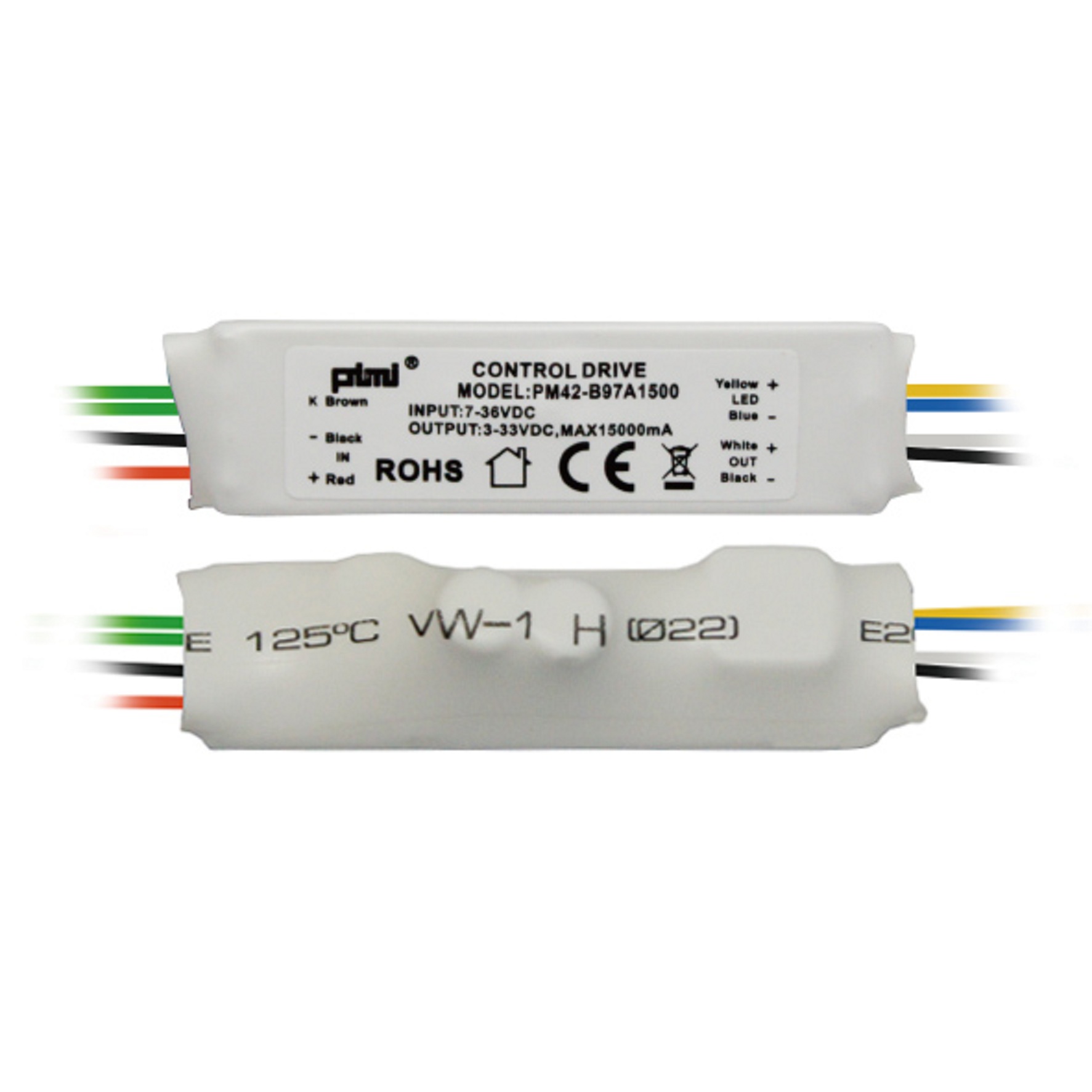

PM42-B97A
Constant voltage input/constant current output LED touch dimmer

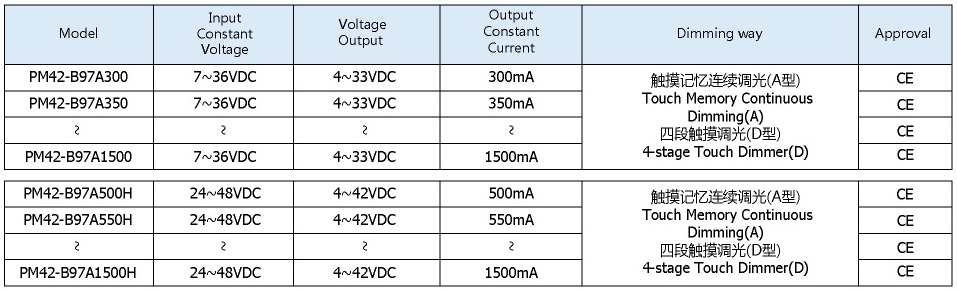

| model | input constant voltage | output voltage | output constant current | dimming mode | approval |
| PM42-B97A300 | 7-36V | 4-33V | 300mA | Touch continuous dimming
Step dimming | CE |
| PM42-B97A350 | 7-36V | 4-33V | 350mA | CE | |
| ↓ | ↓ | ↓ | ↓ | CE | |
| PM42-B97A1500 | 7-36V | 4-33V | 1500mA | CE | |
| PM42-B97A500H | 24-48V | 4-42V | 500mA | CE | |
| PM42-B97A550H | 24-48V | 4-42V | 550mA | CE | |
| ↓ | ↓ | ↓ | ↓ | CE | |
| PM42-B97A1500H | 24-48V | 4-42V | 1500mA | CE |
Dimensions(L*W*H): 65*19*15mm
Dimming mode: touch memory continuous dimming
4-stage touch dimming
Features: output overload protection
output short circuit protection
output open circuit protection
overheat protection
meet ROHS requirements
Standards: EN 55015
EN 61000
EN 61547
EN 61058
