$2.50 - $3.50 / piece
- Warranty(Year):2-Year
- Lighting solutions service:auto CAD layout
- Place of Origin:Guangdong, China
- Brand Name:PIMI
- Type:MANUAL SWITCH
- Max. Load Power:36W
- Product name:LED touch dimmer switch
- Input Voltage:12-24V DC
- Output Voltage:12-24V DC
- Output Current:3000mA max
- Wire:2468 22AWG
- Application:Control Lights
- Warranty:3 Years
- Certificates:CE FCC ROHS
- Case:Black or transparent
- Dimming:Step and continuous dimming

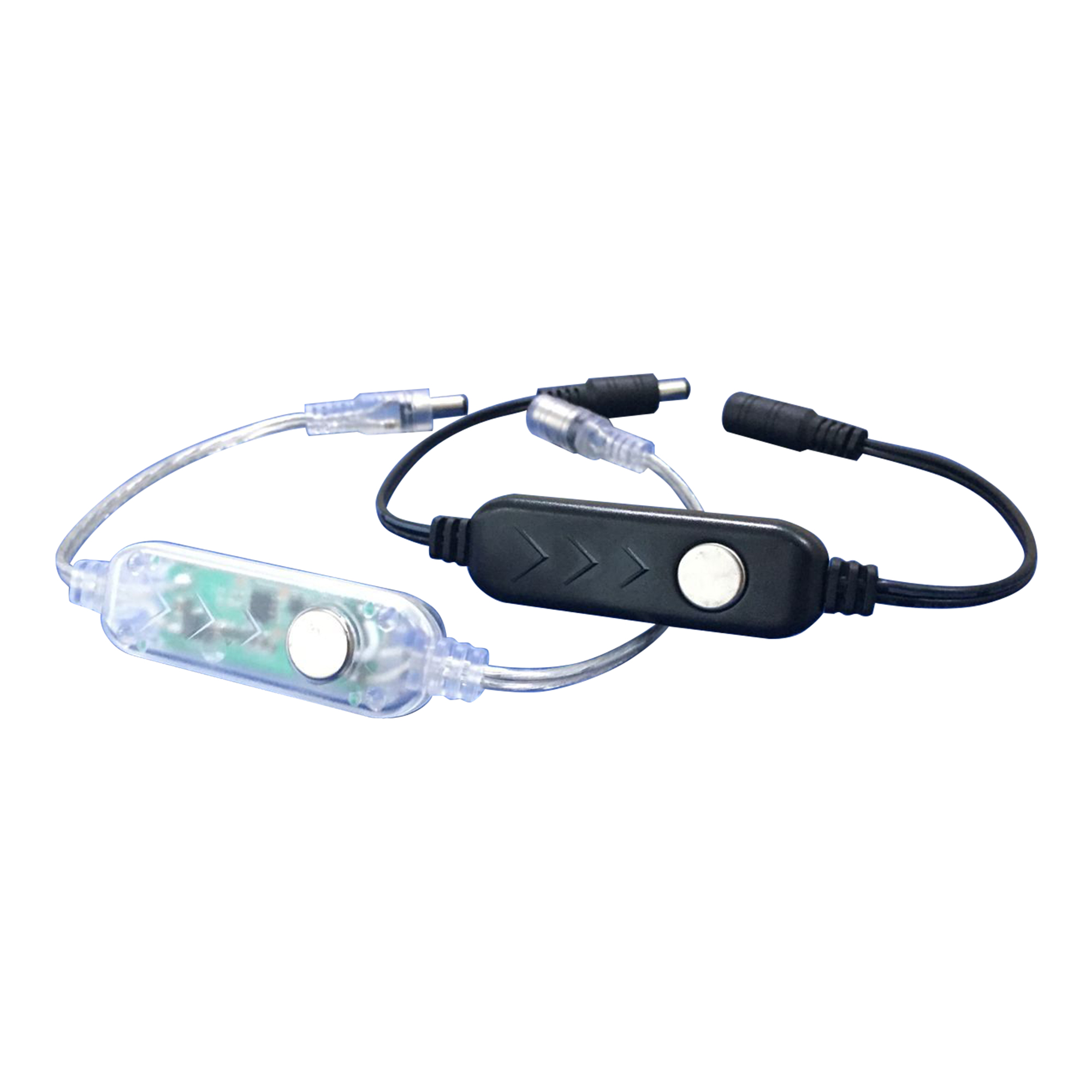

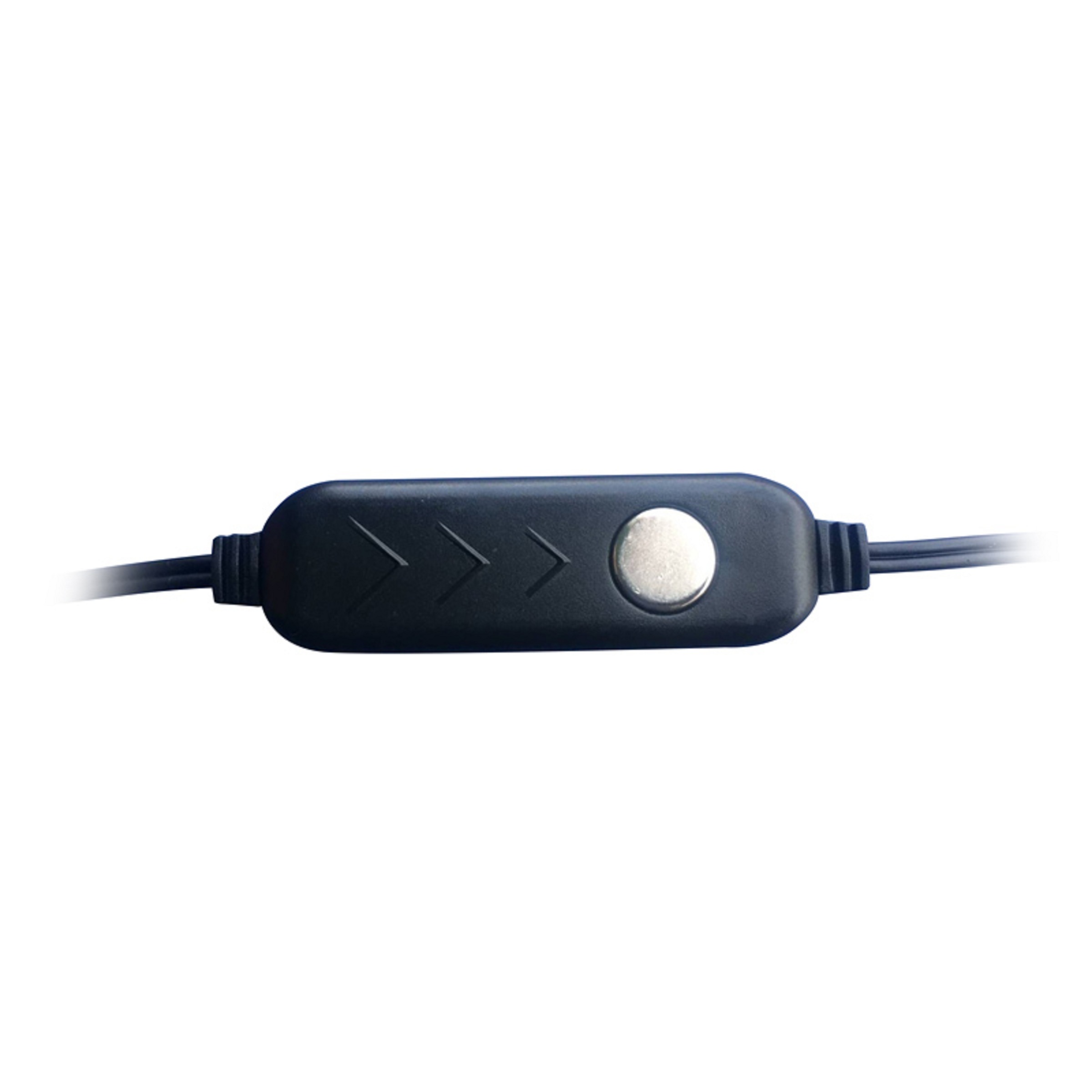

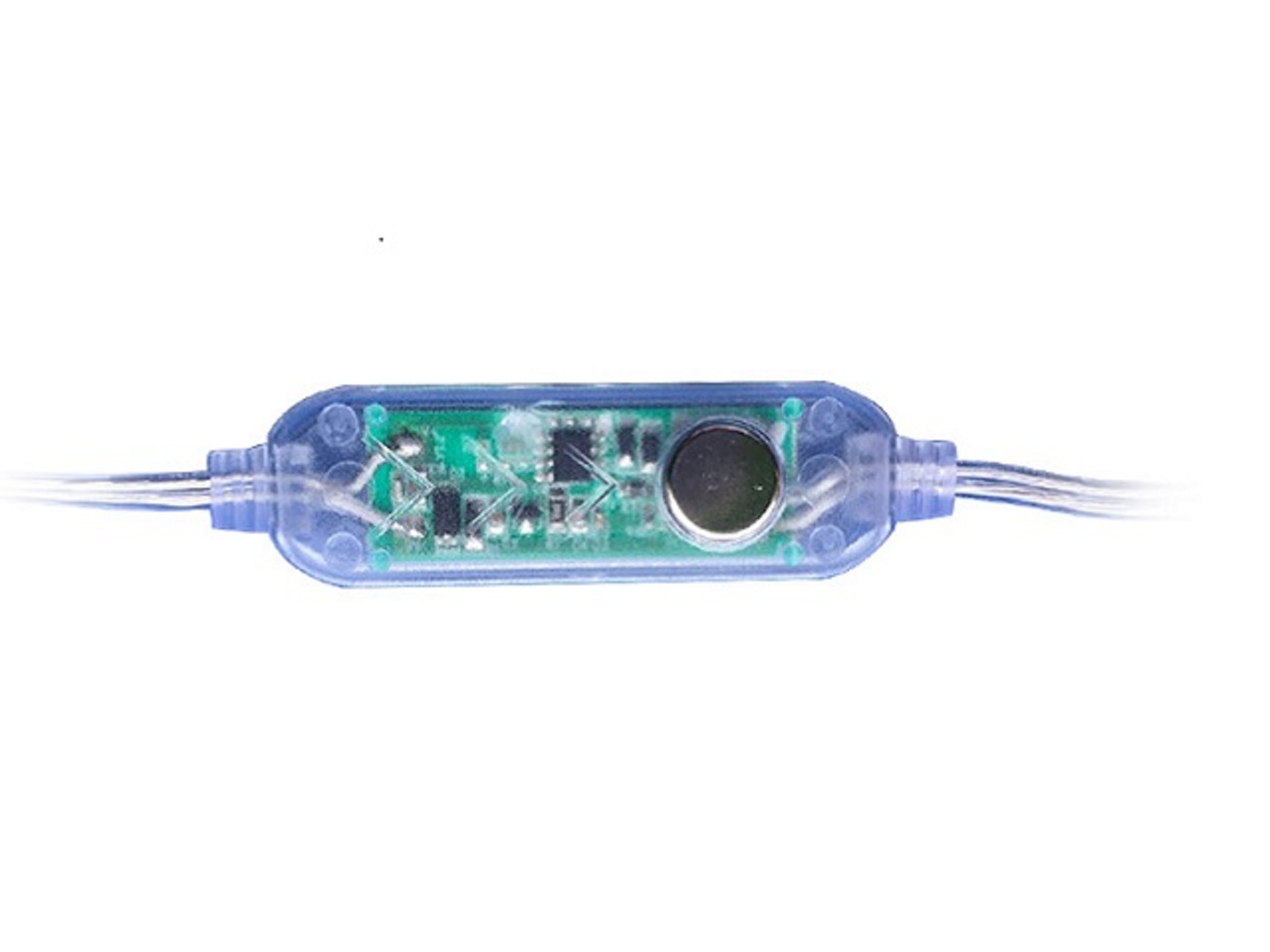

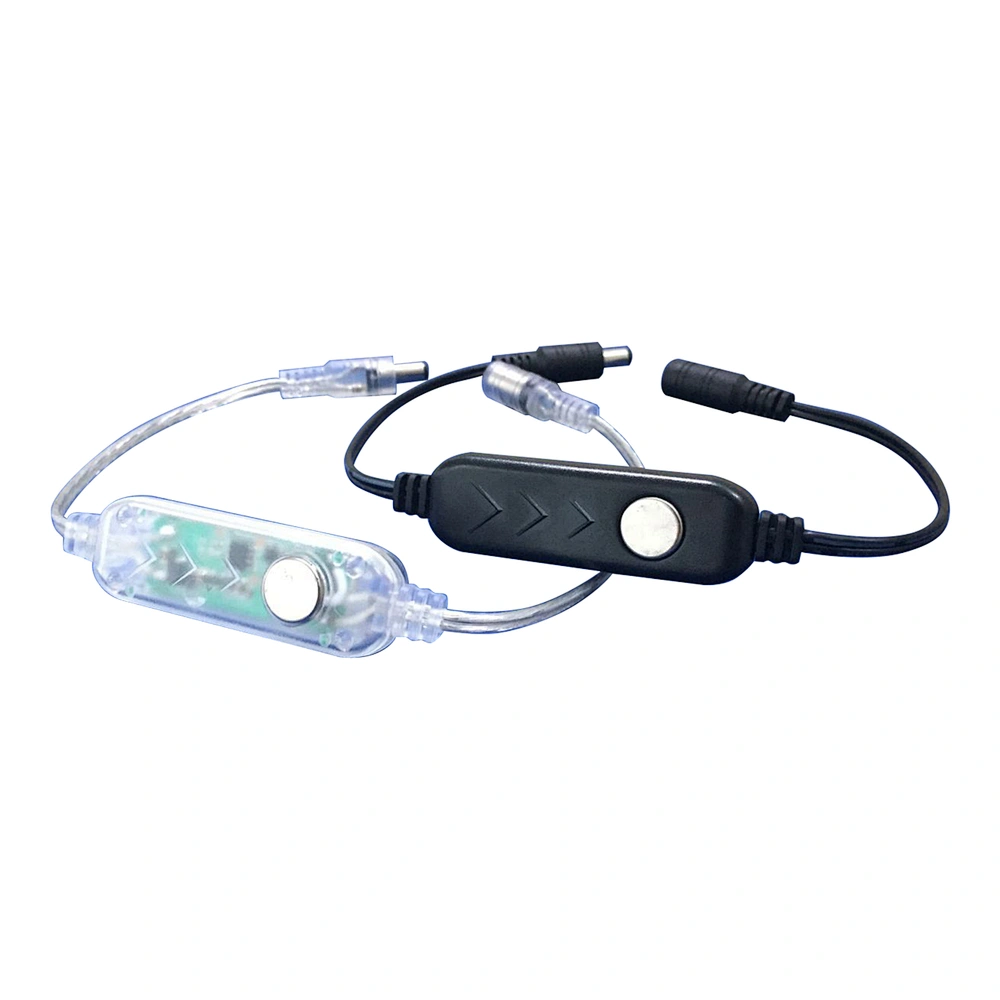

PM42-X90A
LED touch dimmer on line

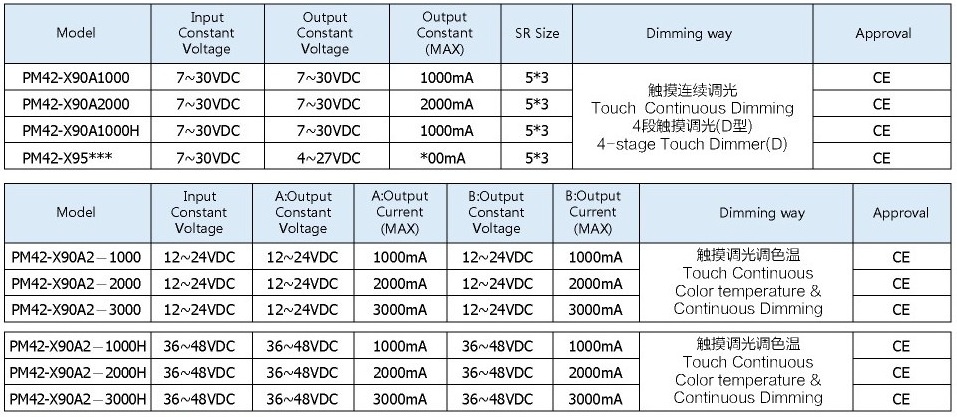

| Model | Input voltage | Output voltage | Output current | SR size | Dimming Mode | Approval |
| PM42-X90A1000 | 7-30 VDC | 7-30 VDC | 1000mA | 5*3 | Continuous dimming
Step dimming | CE |
| PM42-X90A2000 | 7-30 VDC | 7-30 VDC | 2000mA | 5*3 | CE | |
| PM42-X90A1000H | 7-30 VDC | 7-30 VDC | 1000mA | 5*3 | CE | |
| PM42-X95 | 7-30 VDC | 4-27 VDC | to be required | 5*3 | CE |
| Model | Input constant voltage | A output constant voltage | A output current | B output constant voltage | B output current | Dimming mode | Approval |
| PM42-X90A2-1000 | 12-24 VDC | 12-24 VDC | 1000mA | 12-24 VDC | 1000mA | continuous dimming
step dimming
changing CCT | CE |
| PM42-X90A2-2000 | 12-24 VDC | 12-24 VDC | 2000mA | 12-24 VDC | 2000mA | CE | |
| PM42-X90A2-3000 | 12-24 VDC | 12-24 VDC | 3000mA | 12-24 VDC | 3000mA | CE | |
| PM42-X90A2-1000H | 36-48 VDC | 36-48 VDC | 1000mA | 36-48 VDC | 1000mA | CE | |
| PM42-X90A2-2000H | 36-48 VDC | 36-48 VDC | 2000mA | 36-48 VDC | 2000mA | CE | |
| PM42-X90A2-3000H | 36-48 VDC | 36-48 VDC | 3000mA | 36-48 VDC | 3000mA | CE |
Dimensions(L*W*H): 62*20*11mm
Dimming mode: continuous dimming
4-stage touch dimming
Continuous dimming and adjust color temperature
Features: Output over-load protection
Output short circuit protection
Output open circuit protection
Overheat protection
Meet ROHS requirements
Standard: EN 55015
EN 61000
EN 61547
EN 61058
Q1: Are you manufacturer?
A: Yes, our factory has been set up for 8 years. You are welcome to visit us in Dongguan.
Q2: Can you OEM or ODM?
A: Yes, we have strong developing team. The products can be made according to your resquest.
Q3. Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: Is the sample available?
A: Yes, we are very glad to make the samples for your testing.
Q6: What is the warranty?
A: The LED lights have 3 years warranty. If it is our quality problem, we will replace the new one for the broken
Q7: How long is the production time?
A: For samples, the lead time is about 7days. For mass production, the lead time is 20-30days after receiving the deposit payment.
