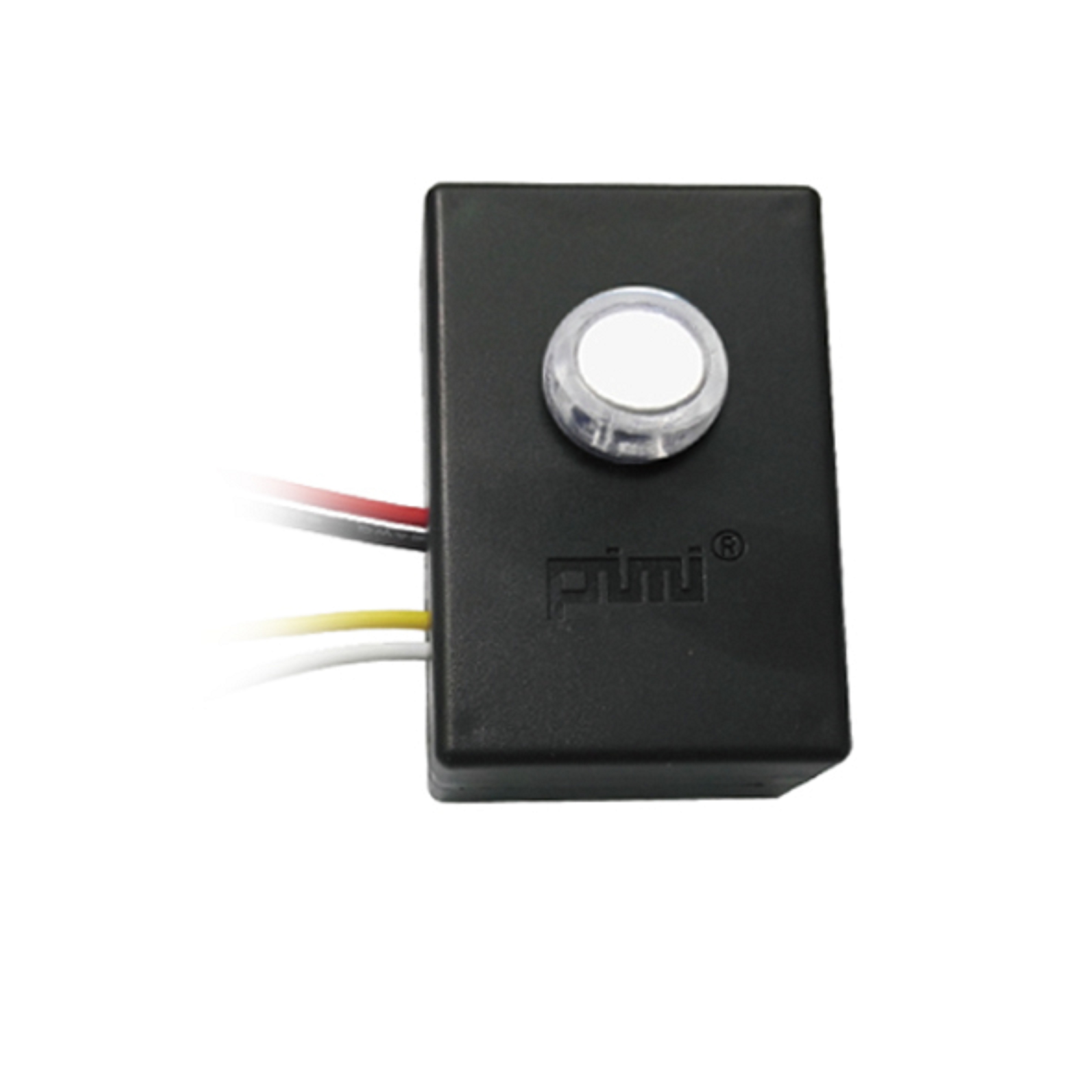

PM41-B16E LED单点触控调光器
价钱
$2.00 - $2.50 / 个
PM41-B16E
1 个
数量
- Warranty(Year):2-Year
- Lighting solutions service:auto CAD layout
- Place of Origin:Guangdong, China
- Brand Name:PIMI
- Type:MANUAL SWITCH
- Max. Load Power:36W
- Product name:LED touch dimmer switch
- Input Voltage:9-24V 24-36V DC
- Output Voltage:6-21V 9-33V DC
- Output Current:200-950mA 500-1500mA
- Output power:18W 36W
- Voltage:9-24V 24-36V DC
- Dimming mode 1:continuous dimming
- Dimming mode 2:step dimming
PM41-B16E
LED single touch dimmer

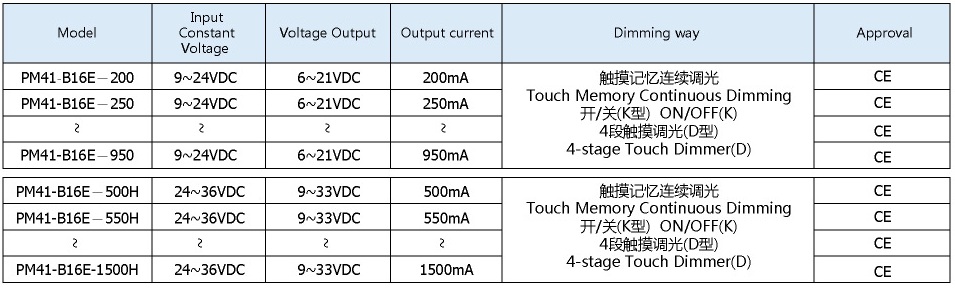

| Model | Input constant voltage | Output voltage | Output constant current | Dimming Mode | Approval |
| PM41-B16E-200 | 9-24 VDC | 6-21 VDC | 200mA | Continuous dimming
Step dimming
ON/OFF | CE |
| PM41-B16E-250 | 9-24 VDC | 6-21 VDC | 250mA | CE | |
| ↓ | ↓ | ↓ | ↓ | ↓ | |
| PM41-B16E-950 | 9-24 VDC | 6-21 VDC | 950mA | CE | |
| PM41-B16E-500H | 24-36 VDC | 9-33 VDC | 500mA | CE | |
| PM41-B16E-550H | 24-36 VDC | 9-33 VDC | 550mA | CE | |
| ↓ | ↓ | ↓ | ↓ | ↓ | |
| PM41-B16E-1500H | 24-36 VDC | 9-33 VDC | 1500mA | CE |
Dimming mode: touch continuous dimming
4-stage touch dimming
With memory function
With blue back light
Dimensions(L*W*H): 48*31*20mm
Touch button: Φ16mm
Standards: EN 55015
EN 61000
EN 61547
EN 61058
